Patch Panel

19'' 1U slidable sc fc st lc unloaded 24port fiber patch panel ODF - 副本 - 副本

Product ID：MO-TECH-PPF03
available in 12port/24port/48port
material:cold rolled steel
Product description: slidable sc fc st lc unloaded 24port fiber patch panel ODF
INQUIRY

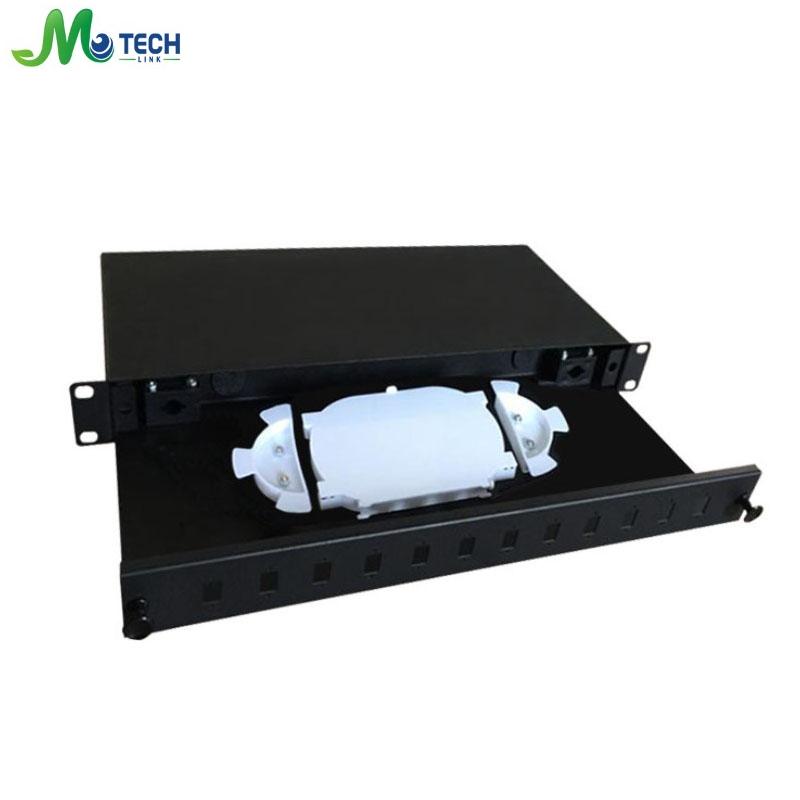

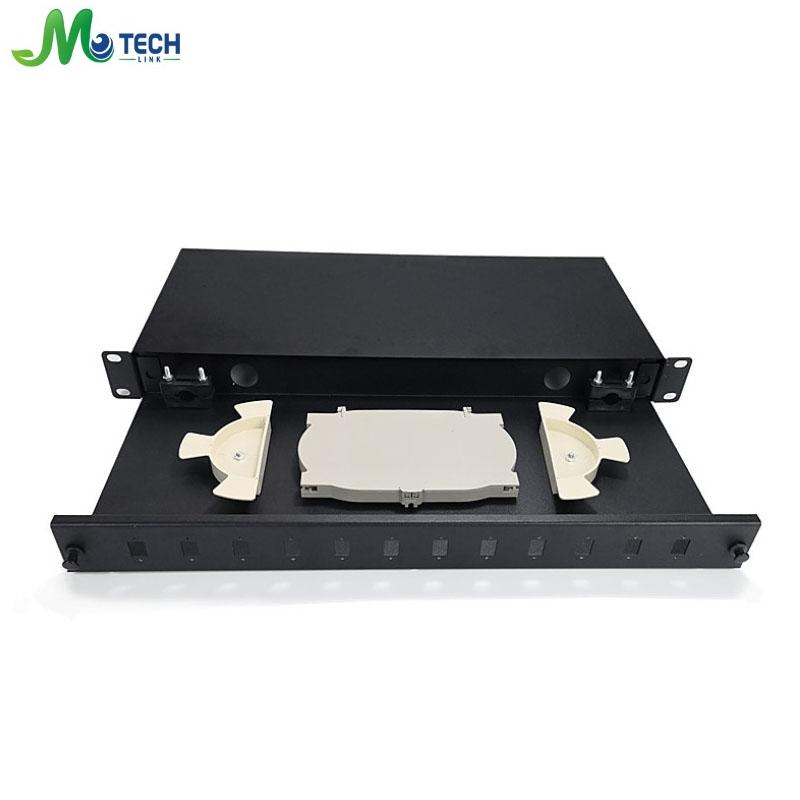

19'' 1U slidable sc fc st lc unloaded 24port fiber patch panel ODF

Fiber optic patch panel is an integrated unit for fiber management, we have wall mounted fiber optic patch panel and rack
mounted fiber optic patch panels to fix and manage the fiber optic cables inside the patch panel as well as provide protection.
There are several different models to fit for 12 core fiber,24 core fiber,36 core fiber,48 core fiber, 72 core fiber,96 core
fiber,144 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC,

Features:

1 Standard size, light weight and reasonable structure 2 Slide out drawer for easy cable management 3 FC, SC, ST, LC adapter patch panel for option, easy to replace. 4 Front access panel design for easy operation 5 Suitable for 19’’ or 23’’ standard optic distribution cabinets 6 Capacity 12 fibers, splice trays of 12 fibers 7 4 fiber cable entry ports at rear side 8 White or black color 9 Material: Cold-roll steel

Applications:

1. Suitable for Pigtail, ribbon and bunch cable connectors distribution
2. Used in wall or terrace installation

Product Specifications

Item	Description
Fiber Capacity of panel	12 24 48 port usually
Dimension	19'' 1U/2U/3U/4U...
Panel Connector	SC LC ST FC
Type	Fixed Type, Slidable Type
Material	Cold Rolled Steel or Aluminum
Storage Temperature	-45~+65℃
Thickness	0.8/1.0/1.2 mm
